Technical Specifications
| General Specification | ||||||||
| Dimension | 120*95*38MM | |||||||
| Weight | 280G | |||||||
| Operating Voltage | 12-36V DC | |||||||
| GPS Antenna | External Active | |||||||
| ACC Function | Support | |||||||
| Frequency Band | ||||||||
| GSM | EGSM900MHZ | |||||||
| DCS1800MHZ | ||||||||
| CDMA200/EVDO | BC0 | |||||||
| WCDMA | Band1 | |||||||
| Band8 | ||||||||
| TD-SCDMA | TD-SCDMA 1.9G | |||||||
| TD-SCDMA 2G | ||||||||
| LTE-FDD | LTE-FDD B1 | |||||||
| LTE-FDD B3 | ||||||||
| LTE-FDD B8 | ||||||||
| LTE-TDD | LTE-FDD B38 | |||||||
| LTE-FDD B39 | ||||||||
| LTE-FDD B40 | ||||||||
| LTE-FDD B41 | ||||||||
| TX Power | ||||||||
| GSM/GPRS Power Level | EGSM900:4(2W) | |||||||
| DCS1800:1(1W) | ||||||||
| EDGE Power Level | DGSM900:E2(0.5W) | |||||||
| DCS1800:E1(0.4W) | ||||||||
| CDMA 1X Power Level | 3（0.25W) | |||||||
| UMTS Power Level | WCDMA:3(0.25W) | |||||||
| EVDO:3(0.25W) | ||||||||
| TD-SCDMA:2(0.25W) | ||||||||
| LTE Power Level | 3（0.25W) | |||||||
| Receiving Sensitivity | ||||||||
| Frequency | Sensitivity | Sensitivity(Max) | ||||||
| EGSM900 | ＜-109dBm | 3GPP | ||||||
| DCS1800 | ＜-109dBm | 3GPP | ||||||
| WCDMA 2100 | ＜-110dBm | 3GPP | ||||||
| WCDMA 900 | ＜-109dBm | 3GPP | ||||||
| TDSCDMA 1900 | ＜-109dBm | 3GPP | ||||||
| TDSCDMA 2000 | ＜-109dBm | 3GPP | ||||||
| CDMA BC0 | ＜-109dBm | 3GPP | ||||||
| LTE FDD/TDD | As follows | 3GPP | ||||||
| Reference sensitivity | ||||||||
| E-UTRA |
3GPP Standard |
Test Data |
3GPP Standard |
Duplex Mode | ||||
| Frequency Band |
|
3MHZ | 5MHZ | 10MHZ | 10MHZ | 15MHZ | 20MHZ | |
| 1 | - | - | -100 | -97 | -101 | -95.2 | -94 | FDD |
| 3 | -101.7 | -98.7 | -97 | -94 | -99 | -92.2 | -91 | FDD |
| 8 | -102.2 | -99.2 | -97 | -94 | -102 |
|
|
FDD |
| 38 | - | - | -100 | -97 | -101 | -95.2 | -94 | TDD |
| 39 | - | - | -100 | -97 | -101.5 | -95.2 | -94 | TDD |
| 40 | - | - | -100 | -97 | -101 | -95.2 | -94 | TDD |
| 41 | - | - | -99 | -96 | -101 | -94.2 | -93 | TDD |
| GPS Parameters | ||||||||
| GPS Sensitivity | -159dBm（GPS)/-158dBm（GLONASS)/TBD(BD) | |||||||
| Cold Start Sensitivity | -148dBm | |||||||
| Positioning Accuracy (in the open air) | 2.5m | |||||||
| TTFF(In the open air) | Hot Start＜1S，Cold Start＜35S | |||||||
| Type | 16-channel,C/A Code | |||||||
| GPS L1 Frequency | 1574.42±1.023MHZ | |||||||
| GLONASS Frequency | 1597.5~1605.8MHZ | |||||||
| BeiDou Frequency | 1559.05~1563.14MHZ | |||||||
| Update Frequency | Default 1Hz | |||||||
| GNSS Data Format | NMEA-0183 | |||||||
| GNSS Current Consumption | 100mA(GSM/CDMA 1X/UMTS/LTE Sleep，VBAT Pin） | |||||||
| GNSS | Active | |||||||

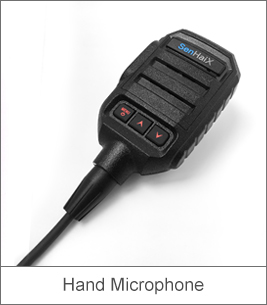

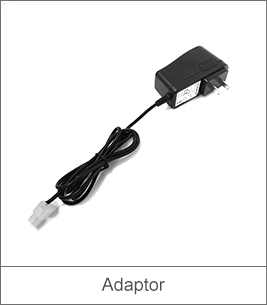

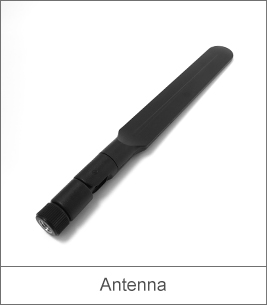

Standard Accessories
Optional Accessories
